Slimdrive EMD * Electromechanical swing door drive with only 7 cm height for single leaf doors up to 180 kg
- Opening and closing speed can be individually adjusted
- Electrical latching action which accelerates the door shortly before the closed position
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects an object through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
Application Areas
- Single-action, single leaf, right and left closing doors
- Single-action doors up to 1400 mm leaf width and 180 kg weight
- Interior and exterior doors with high access frequency
- Door leaf installation and transom installation
Technical data

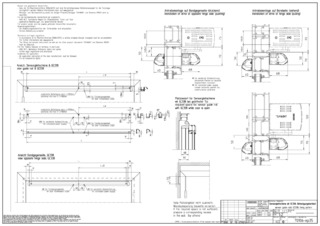

Slimdrive EMD | |
Height | 70 mm |
Depth | 121 mm |
Leaf weight (max.) 1-leaf | 180 kg |
Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1500 mm - 2800 mm |
Leaf width (min.-max.) | 750 mm - 1400 mm |
Reveal depth (max.) | 400 mm |
Door overlap (max.) | 30 mm |
Drive type | Electromechanical |
Opening angle (max.) | 130 ° |
DIN left | Yes |
DIN right | Yes |
Transom installation opposite hinge side with link arm | Yes |
Transom installation opposite hinge side with roller guide rail | Yes |
Transom installation hinge side with roller guide rail | Yes |
Door leaf installation hinge side with roller guide rail | Yes |
Electrical latching action | Yes |
Electrical closing sequence control | Yes |
Disconnection from mains | Main switch in the drive |
Activation delay (max.) | 20 s |
Operating voltage | 230 V |
Power rating | 230 W |
Power supply for external consumers (24 V DC) | 1000 mA |
Service temperature | -15 - 50 °C |
IP rating | IP20 |
Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
Type of function | Fully automatic |
Automatic function | Yes |
Low-energy function | Yes |
Key function | Yes |
Vestibule function | Yes |
Obstacle detection | Yes |
Automatic reversing | Yes |
Push & Go | adjustable |
Operation | Programme switch DPS, Programme switch integrated in the drive |
Parameter setting | GEZEconnects (PC + Bluetooth), Service terminal ST 220, Programme switch DPS |
Standard conformity | DIN 18650, EN 16005 |
Downloads
LABELLING OBLIGATION: © Oliver Look / GEZE GmbH
LABELLING OBLIGATION: © Stefan Dauth / GEZE GmbH
LABELLING OBLIGATION: © Oliver Look / GEZE GmbH
LABELLING OBLIGATION: © Oliver Look / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
