Panic locks for tubular framed doors

IQ lock M * Mechanical panic lock for simple panic functions on single leaf doors

Mechanical self-locking ensures automatic crossbar projection every time the door is closed
Panic function which opens (even locked) emergency exits in the direction of escape
Divided cross latch prevents the bolt from locking even under side-load
Small rear backset and small dimensions of the lock case
Can be combined with electronic thumbturn cylinders

Application Areas

Single leaf emergency exit and panic doors
Doors along escape and rescue routes
Fire and smoke protection doors

Technical data

	IQ lock M
DIN direction	left / right
Service temperature	-10 - 50 °C
Panic function / mechanical self-locking	Yes
Divided cross latch (3 mm gap between latch and bolt)	Yes
Current consumption	N/A, N/A
Resistant to forcing	10000 N

Downloads

Certificate

Certificate of constancy of performance IQ lock - EN 1125 (EN) (.pdf | 464 KB)

Certificate of constancy of performance IQ lock - EN 179 (EN) (.pdf | 450 KB)

Environmental declaration

Environmental Product Declaration (EPD) Locks (.pdf | 553 KB)

Product brochure

GEZE IQ locks self-locking panic locks (.pdf | 362 KB)

Product overview (.pdf | 10 MB)

Product data sheet

IQ lock M Product data sheet EN (.pdf | 95 KB)

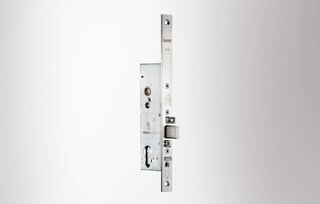

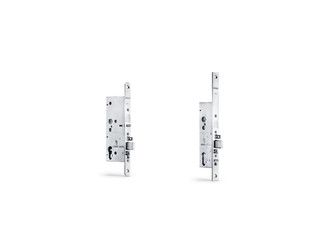

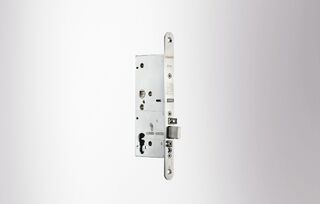

Product shot

IQ Lock M

LABELLING OBLIGATION: © GEZE GmbH

IQ Lock M 7255

LABELLING OBLIGATION: © GEZE GmbH

IQ Lock M 9235

User manual

IQ lock Commissioning and connection guide (.pdf | 2 MB)

Variants & Accessories

Variants

Show differences only

Ident-No.	Description	Distance lock	Backset	DIN direction	Face plate dimensions	Colour
110195	for solid leaf doors / with round face plate 20 x 235 x 3 mm	72 mm	100 mm	left / right	20 x 235 x 3 mm	EV1
161353	for tubular-framed doors with rectangular face plate 24 x 285 x 3 mm	92 mm	40 mm	left / right	24 x 285 x 3 mm	EV1
114611	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	100 mm	left / right	20 x 235 x 3 mm	EV1
114651	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	70 mm	left / right	20 x 235 x 3 mm	EV1
110192	for solid leaf doors / with round face plate 20 x 235 x 3 mm	72 mm	55 mm	left / right	20 x 235 x 3 mm	EV1
115016	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	92 mm	40 mm	left / right	24 x 270 x 3 mm	EV1
114606	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	94 mm	40 mm	left / right	24 x 270 x 3 mm	EV1
114647	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	94 mm	35 mm	left / right	24 x 270 x 3 mm	EV1
161354	for tubular-framed doors with rectangular face plate 24 x 285 x 3 mm	92 mm	45 mm	left / right	24 x 285 x 3 mm	EV1
114607	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	94 mm	45 mm	left / right	24 x 270 x 3 mm	EV1
110193	for solid leaf doors / with round face plate 20 x 235 x 3 mm	72 mm	65 mm	left / right	20 x 235 x 3 mm	EV1
162618	for tubular-framed doors / with rectangular face plate 28 x 270 x 3 mm	92 mm	35 mm	left / right	28 x 270 x 3 mm	EV1
114648	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	94 mm	40 mm	left / right	24 x 270 x 3 mm	EV1
157376	for tubular-framed doors / with rectangular face plate 22 x 285 x 3 mm	92 mm	45 mm	left / right	22 x 285 x 3 mm	EV1
163833	for solid leaf doors / with round face plate 24 x 235 x 3 mm	72 mm	65 mm	left / right	24 x 235 x 3 mm	EV1
103603	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	92 mm	35 mm	left / right	24 x 270 x 3 mm	EV1
163344	for tubular-framed doors / with rectangular face plate 22 x 285 x 3 mm	92 mm	40 mm	left / right	22 x 285 x 3 mm	EV1
114604	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	94 mm	35 mm	left / right	24 x 270 x 3 mm	EV1
110191	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm	92 mm	45 mm	left / right	24 x 270 x 3 mm	EV1
110194	for solid leaf doors / with round face plate 20 x 235 x 3 mm	72 mm	80 mm	left / right	20 x 235 x 3 mm	EV1
162619	for tubular-framed doors / with rectangular face plate 28 x 270 x 3 mm	92 mm	40 mm	left / right	28 x 270 x 3 mm	EV1
157375	for tubular-framed doors / with rectangular face plate 22 x 285 x 3 mm	92 mm	35 mm	left / right	22 x 285 x 3 mm	EV1
114653	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	100 mm	left / right	20 x 235 x 3 mm	EV1
114652	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	80 mm	left / right	20 x 235 x 3 mm	EV1
114609	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	70 mm	left / right	20 x 235 x 3 mm	EV1
163832	for solid leaf doors / with round face plate 24 x 235 x 3 mm	72 mm	80 mm	left / right	24 x 235 x 3 mm	EV1
114610	for solid leaf doors / with round face plate 20 x 235 x 3 mm	78 mm	80 mm	left / right	20 x 235 x 3 mm	EV1
161342	for tubular-framed doors with rectangular face plate 24 x 285 x 3 mm	92 mm	35 mm	left / right	24 x 285 x 3 mm	EV1

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
