Panic locks for tubular framed doors

IQ lock M DL * Mechanical panic lock for simple panic functions on double leaf doors

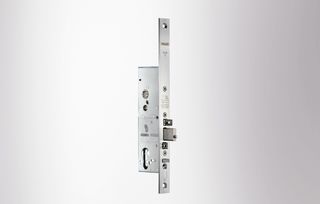

IQ Lock M DL
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Unlocking of active leaf by activating passive leaf (full panic function)
  • Divided cross latch prevents the bolt from locking even under side-load
  • Small rear backset and small dimensions of the lock case
  • Can be combined with electronic thumbturn cylinders
Contact us

Application Areas

  • Double leaf emergency exit and panic doors (left hand and right hand door)
  • Doors along escape and rescue routes
  • Fire and smoke protection doors

Technical data

IQ lock M DL
DIN direction left / right
Service temperature -10 - 50 °C
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Current consumption N/A, N/A
Resistant to forcing 10000 N
