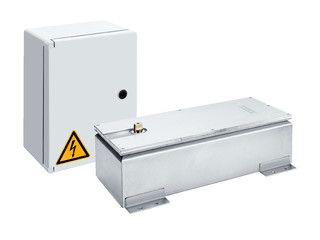

UFO NT * Electromechanical floor-mounted swing door drive for single leaf doors weighing up to 125 kg
- Drive unit is embedded in the floor and meets the highest design expectations
- High degree of IP protection and sealed stainless steel housing for outdoor use
- Smart swing function for easy manual door opening
- Closing force with variable adjustment
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Obstacle detection detects an object through contact and stops the opening or closing process
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
Application Areas
- Single-action, single leaf, right and left closing doors
- Doors up to 1100 mm leaf width or 125 kg in weight
- Minimum door leaf width is 600 mm
- Interior and exterior doors with high access frequency

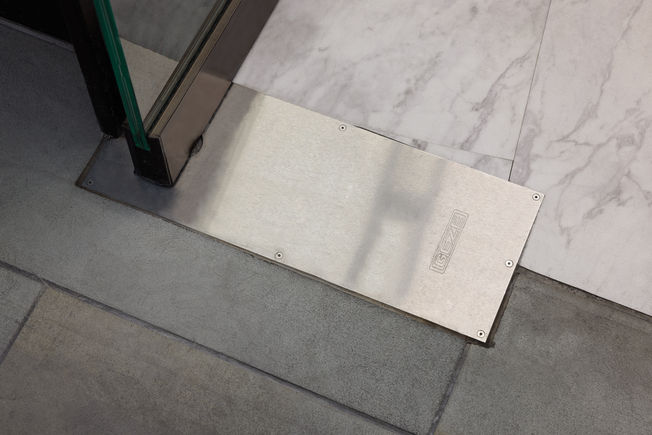

- Floor mounting, concealed
Technical data
| UFO NT | |
| Height | 150 mm |
| Width | 195 mm |
| Leaf weight (max.) 1-leaf | 125 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1200 mm - 2200 mm |
| Leaf width (min.-max.) | 600 mm - 1600 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Mechanical latching action | Yes |
| Closing force adjustable | Yes, stepless |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Activation delay (max.) | 10 s |
| Power rating | 200 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP67 |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| function smart swing | Yes |
| Obstacle detection | Yes |
