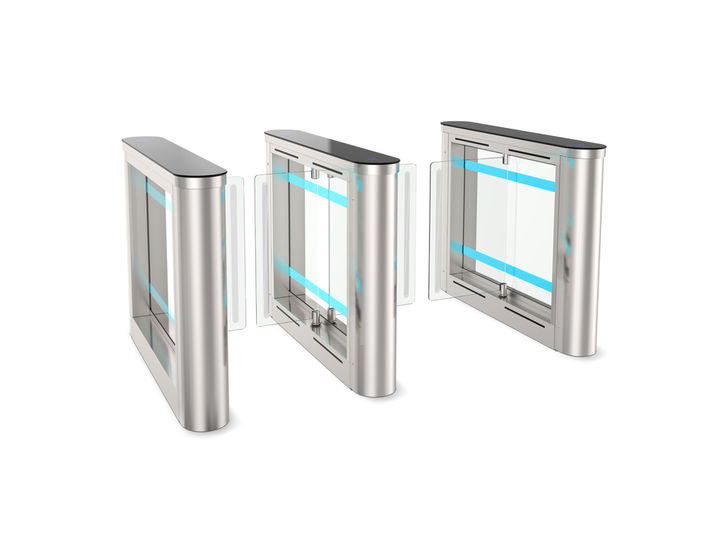

SW 100 * Speed gate with swivelling glass leaves for anti-tailgating
- Automatic opening and closing of the swing leaves for convenient access
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Safety sensors ensure that only one person is granted access
- Control via push button or via an access control system
- Stainless steel housing, stainless steel or solid glass plate top
- Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
- Passage capacity 30 persons per minute
- BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
The SW 100 speed gate is a good choice for projects where sophisticated design is key. Glass top and side panels, as well as this speed gate’s appearance in general, provide a feeling of transparency and make it a suitable solution for the most demanding and stylish interiors. The SW 100 speed gate’s operation principle, together with the swinging wings, enables wide lanes to be established.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Passage width 550 or 900 mm
- For internal application
Technical data
| SW 100 | |
| Passage width single | 550 mm |
| Passage width barrier-free | 900 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Opening speed | 0.3 s |
| Closing speed | 0.6 s |
| Passage capacity | 30 Pers./min. |
| Anti-tailgating | Yes |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
