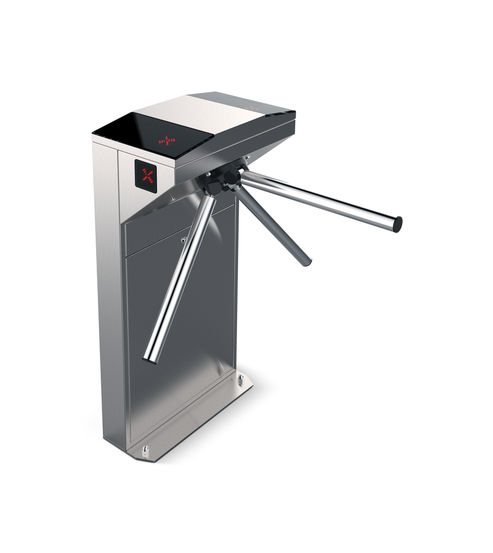

TT 300 * Turnstile with stainless steel tripod gate for anti-tailgating and large display surface
- Wide display surface available on the side and top of the housing
- Mounting bracket for the card reader under the glass surface of the housing
- After release, slight pressure on the gate is all that is necessary to gain access
- Housing design allows for use in external applications, no awning or conversion necessary
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Control via push button or via an access control system
- Housing and gate made of brushed or polished stainless steel, powder coating available
- The drop arm function enables free passage in case of emergency
- Rechargeable battery available for power failure
- Double-sided installation of the TT 300 turnstile possible
- Passage capacity individual access 25 persons per minute, free access 60 persons per minute
The TT 300 turnstile features the best of the TT 400 and TT 200 turnstiles. The TT 300 turnstile was designed as a hybrid of the TT 400 and TT 200 turnstiles. It features reliable and solid housing, and like the other tripod turnstiles, it has reader mounting brackets under the top. The TT 300 turnstile has a double LED display - on the side and on the top. It is available with a back-up battery connection. A variety of housing finishing types enables this turnstile to be used in a range of buildings, both indoors and outdoors. A drop arm function is available.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Passage width 600 mm
- For indoor and outdoor use
Technical data
| TT 300 | |
| Passage width single | 600 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 Standard / IP54 on request |
| Passage capacity | 60 Pers./min. |
| Anti-tailgating | No |
| Drop-arm function | Yes |
| Standard harmonized | EN 17352:2022 |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
