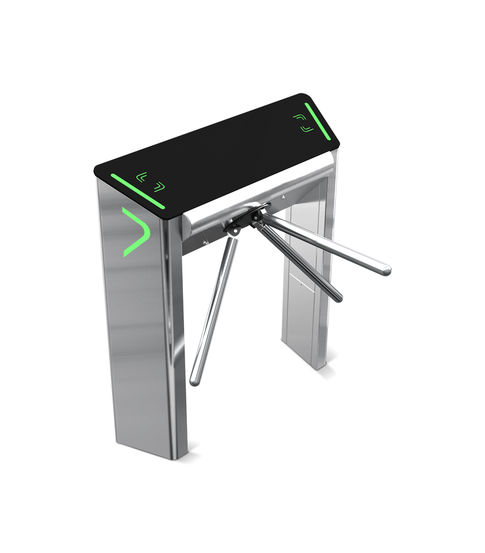

OX M * Designer turnstile for anti-tailgating with stainless steel tripod gate in a solid design
- After release, slight pressure on the gate is all that is necessary to gain access
- Stainless steel housing, scratch-resistant, black glass top with two readers
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Control via push button or via an access control system
- Gate made of brushed or polished stainless steel, powder coating available
- LED lighting on the top and side indicate the access status (blue: ready mode, green: access authorised, red: access denied)
- Highly robust turnstile with fully automatic anti-panic system
- The drop arm function enables free passage in case of emergency
- Rechargeable battery available for power failure
- Passage capacity individual access 25 persons per minute, free access 60 persons per minute
Ergonomically designed with stylish lines with an efficient control system, the OX M is ideal for today’s contemporary interiors. The OX M is equipped with an automatic bi-directional servo-drive mechanism with a robust locking system and operates reliably and efficiently in high traffic locations. This model is also equipped with an automatic anti-panic system. In an emergency, the arms are automatically lowered and users can freely pass through unhindered. The cabinet tops are made of a scratch-resistant black glass, which allows for simple maintenance and long lasting aesthetics.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- For entrances and exits with high public traffic
- Passage width 600 mm
- For internal application
Technical data
| OX M | |
| Passage width single | 600 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Passage capacity | 60 Pers./min. |
| Anti-tailgating | No |
| Drop-arm function | Yes |
| Standard harmonized | EN 17352:2022 |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
