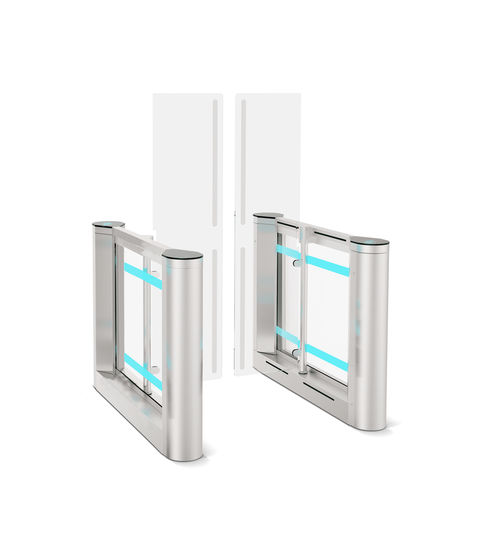

SW 100 High Glass Wide * Wide speed gate with high glass leaves for anti-tailgating
- Automatic opening and closing of the swing leaves for convenient access
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Safety sensors ensure that only one person is granted access
- Prevents objects from being passed through and the speed gate from being jumped over
- Control via push button or via an access control system
- Stainless steel housing, solid glass plate top
- LED lighting on the leaf indicates the access status (blue: ready mode, green: access authorised, red: access denied)
- Rechargeable battery available for power failure / In the event of a power failure, the gate can be manually opened (fail-safe)
- Passage capacity 20 persons per minute
- BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
The SW 100 High Glass Wide is a version of speed gate SW 100. It has high glass leaves for a higher degree of security and wider lanes for ease of carrying luggage and wheelchair access. High glass leaves help to avoid the transfer of anything above the turnstile and reduces the risk of people jumping over it. The special design allows up to a 1200 mm passage which can be used for people with special needs. The elegant cabinet is fitted with integrated LED lighting to indicate access status and is equipped with safety sensors and tailgate sensors.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Can be used for increased security requirements
- Passage width 1200 mm
- For internal application
Technical data
| SW 100 High Glass Wide | |
| Passage width single | 1200 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Opening speed | 0.9 s |
| Closing speed | 0.9 s |
| Passage capacity | 20 Pers./min. |
| Anti-tailgating | Yes |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
