SG range - Turnstiles with swing gates

SG 100 * Servo-driven turnstile with swivelling leaf

!SG 100!
  • Suitable for combination with other turnstiles to achieve passages of up to 1000 mm
  • After release, the turnstile opens and closes automatically
  • Design allows for smoother passage as gate with tripod turnstile
  • In the event of a power failure, the gate can be manually opened (fail-safe)
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Control via push button or via an access control system
  • Turnstile available made of brushed or polished stainless steel
Contact us

SG 100

The motorised SG 100 turnstile is flexible and is suitable for all buildings and interiors. It is available with a passage width of 600 mm or 850 mm. This type of anti-tailgating system can be controlled both manually using a push button, as well as via an interface with a variety of access control systems.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Passage width 600 or 850 mm
  • For internal application
  • Wall mounting possible as an option

Technical data

SG 100
Passage width single 600 mm
Passage width Accessible 850 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41 Standard / IP65 on request
Anti-tailgating No
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

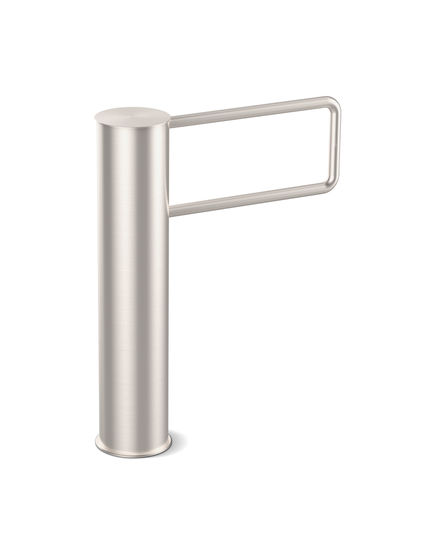

!SG 100! Product shot (2153658)
LABELLING OBLIGATION:  © GEZE GmbH
SG 100 * Product data sheet EN
Download (.PDF | 435 KB)

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
