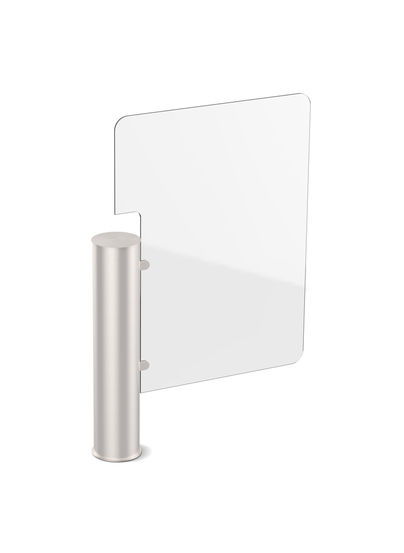

SG 200 High Glass * Turnstile for anti-tailgating function with higher glass leaf
- After release, the swivelling leaf opens by 90° and then returns automatically to the closing position
- Design allows for smoother passage as gate with tripod turnstile
- In the event of a power failure, the gate can be manually opened (fail-safe)
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Control via push button or via an access control system
- Turnstile available made of brushed or polished stainless steel
These turnstiles offer access control with single or dual direction control. The primary purpose of the servo-type turnstile is single or dual direction control of pedestrian access for industrial premises, administrative establishments, banks, offices, shops, stations and other sites. Due to its unique shape and variety of models, it can suit any interior. The SG 200 series is easy to operate, compact and equipped with glass leaves.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- Passage width 600 or 850 mm
- For internal application
- Wall mounting possible as an option
Technical data
| SG 200 High Glass | |
| Passage width single | 600 mm |
| Passage width barrier-free | 850 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 Standard / IP65 on request |
| Anti-tailgating | No |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
