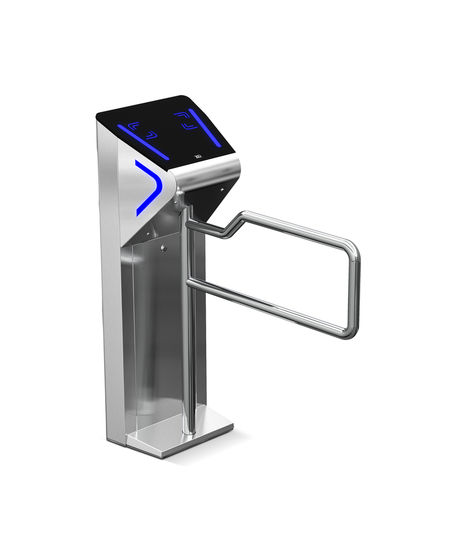

OX TS * Servo turnstiles for anti-tailgating with metal swivelling leaves
- Automatic opening and closing of the swing gates for convenient access
- After release, the swivelling leaf opens by 90° and then returns automatically to the closing position
- Design allows for smoother passage as gate with tripod turnstile
- In the event of a power failure, the gate can be manually opened (fail-safe)
- Bi-directional usage possible, i.e. access and exit can take place in the same lane
- Control via push button or via an access control system
- Turnstile available made of brushed or polished stainless steel
- Higher passage widths can be realised with larger leaves
- BMDrive® servo-driven (BLDC): BMDrive® ensures long term maintenance free operation and automatically analyses the system, detects critical malfunctions, and records error log and warnings
The ergonomic design of these turnstiles with Servo drive and the slightly curved casing are an excellent solution for installation together with tripod turnstiles from the OX series. Access control in both directions is carried out by turning the leaf in 90° automatically using the BMDrive® mechanism (no need to push). The side-hung leaf is blocked when the mechanism is in its closed position. OX TS is equipped with a metal leaf.
Application Areas
- Regulation and monitoring of the flow of people in a building
- Increased protection of the building against unauthorised access
- Suitable for single and dual direction control
- For entrances and exits with high public traffic
- Passage width 650 to 900 mm
- For internal application
Technical data
| OX TS | |
| Passage width single | 650 mm |
| Passage width barrier-free | 900 mm |
| Standard housing surface | Brushed SS AISI 304 |
| Available housing surface | Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL |
| Operating voltage | From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V |
| IP rating | IP41 |
| Opening speed | 1.8 s |
| Closing speed | 1.2 s |
| Passage capacity | 30 Pers./min. |
| Anti-tailgating | No |
| Drop-arm function | No |
| Standard harmonized | EN 17352:2022 |
