SG range - Turnstiles with swing gates

SG 100 Mechanical * Mechanical turnstile with swivelling leaf

!SG 100 Telescopic!
  • Suitable for combination with other turnstiles to achieve passages of up to 1000 mm
  • After release, a light push on the swing door is all that is needed for access
  • Design allows for smoother passage as gate with tripod turnstile
  • Bi-directional usage possible, i.e. access and exit can take place in the same lane
  • Turnstile available made of brushed or polished stainless steel
Contact us

SG 100 Mechanical

The SG 100 Mechanical mechanical turnstile is flexible and suitable for all buildings and interiors. It is available with a passage width of 585 mm or 1025 mm. The turnstile can be locked at night with a key.

Application Areas

  • Regulation and monitoring of the flow of people in a building
  • Increased protection of the building against unauthorised access
  • Suitable for single and dual direction control
  • Passage width 585 or 1025 mm
  • For internal application
  • Wall mounting possible as an option

Installation situations in reference objects and videos

!SG 100 Telescopic!

!SG 100 Telescopic!

© GEZE GmbH

Technical data

SG 100 Mechanical
Passage width single 585 mm
Passage width Accessible 1025 mm
Standard housing surface Brushed SS AISI 304
Available housing surface Brushed SS AISI 316, Polished SS AISI 304, Polished SS AISI 316, Powder-coated according to RAL
Operating voltage From AC 100-240 V, 50/60 HZ; from a DC voltage source 12 V
IP rating IP41 Standard / IP65 on request
Anti-tailgating No
Drop-arm function No
Standard harmonized EN 17352:2022

Downloads

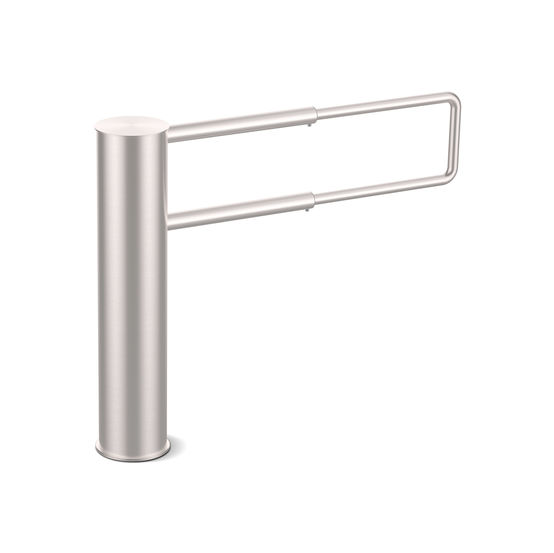

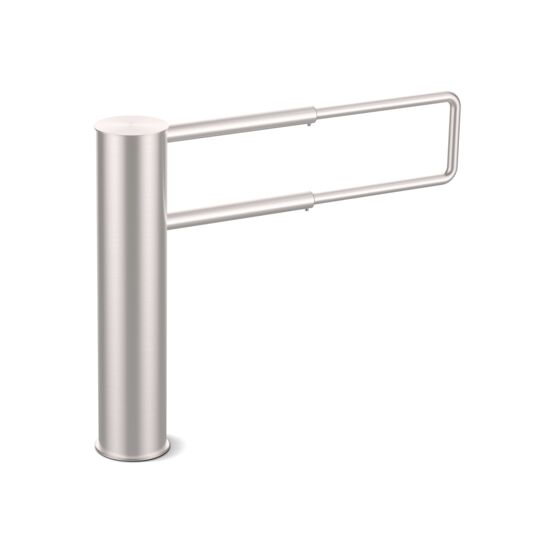

!SG 100 Telescopic! Product shot (2153659)
LABELLING OBLIGATION:  © GEZE GmbH
SG 100 Mechanical * Product data sheet EN
Download (.PDF | 438 KB)

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
