GEZE TS 3000 V

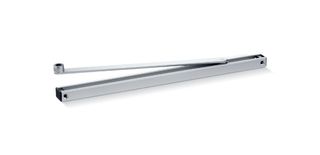

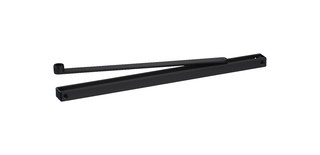

Guide rail BG TS 5000 / 3000 * Standard guide rail with lever, opposite hinge side

Guide rail TS 3/5000 BG
  • With riveted sliding block
Contact us

Standard guide rail with lever, opposite hinge side

Application Areas

  • Single leaf doors
  • Installation on the opposite hinge side
  • Right and left single-action doors

Product data

Guide rail BG TS 5000 / 3000
Length 448.5 mm
Width 30.5 mm
Height 20.5 mm
Free swing function No
opening restrictor upgradable Yes
Hold-open device Optional
Hold-open device can be overridden Yes
Integrated smoke switch No
Integrated closing sequence control No
