TS 1000 C

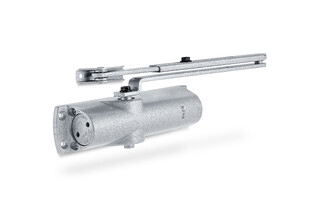

TS 1000 C with hold-open arm * Overhead door closer with link arm for single leaf doors with a leaf width of up to 950 mm

Overhead door closer TS 1000 C The overhead door closer is suitable for single leaf doors with a leaf width of up to 950 mm. The closing speed and hydraulic latching action can be adjusted. Variable closing force in two stages by simply turning the bearing block for the link arm around.
  • Variable closing force of EN2 or EN3 by turning the bearing block around
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Contact us

TS 1000 C with hold-open arm

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 950 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 1000 C with hold-open arm
Closing force in accordance with EN 1154 EN 2/3
Leaf width (max.) 950 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Length 215 mm
Width 44 mm
Height 52 mm
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Mounting position
Hold-open function Mechanical
Hold-open range 70 ° - 150 °

Downloads

Variants & Accessories

Link arm TS 1500/1000 C
Parts

Link arm TS 1500 / 1000 C

With mechanical hold-open device

Product details
Overhead door closer TS 1000 C
Parts

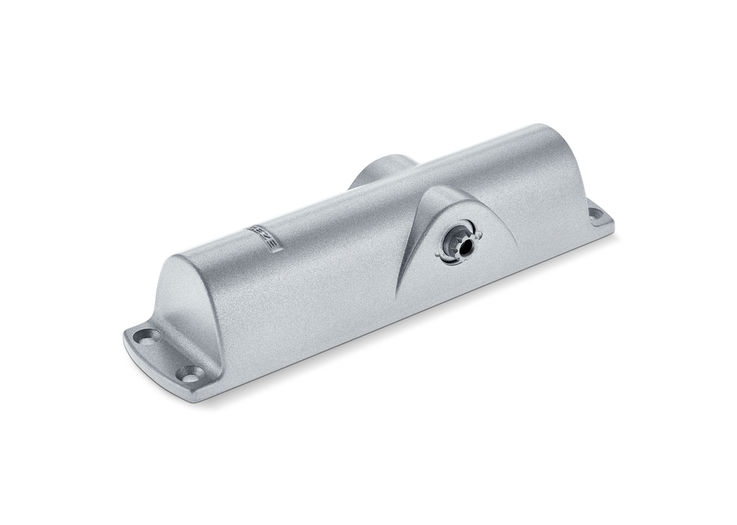

Closer body TS 1000 C

Basic body for overhead door closer with link arm EN 2/3

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
