TSA 325 NT

TSA 325 NT GG * Automatic revolving door system for the realization of all-glass solutions

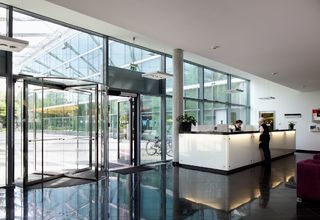

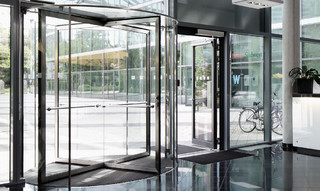

Product Image revolving door website TSA 325 NT GG TSA 325 NT GG, Hotel Amano,Product image revolving door of website
  • Very quiet running, low-wear drive solution with a canopy height of at least 17 mm
  • Drive and control technology are fully concealed in the floor
  • Glass roof with reduced profiles provides additional transparency
  • Reduced aluminium profiles with rounded edges create modern-looking optics
  • Drum walls made of curved laminated safety glass (LSG)
  • Door leaves made of fine-framed toughened safety glass (ESG)
Show more

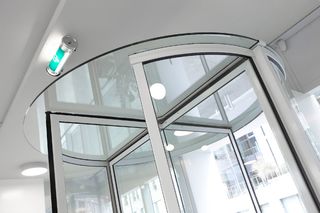

  • Two half shells made of heat-strengthened glass form the roof, which is held by stainless steel point fixings.
  • Precise closing of the door leaves with the side walls
  • Effective insulation effect against draughts, weather and noise
  • Adjustable automatic speed setting, in line with the number of people passing through
  • Manual operation of the door possible, e.g. to carry out cleaning work
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Contact us

Application Areas

  • 3- and 4-leaf all-glass door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Inner diameter ranging from 1800 to 3000 mm possible

Technical data

TSA 325 NT GG
Manual operation Yes
With speed limiter (optional) Yes
With positioning device (optional) Yes
Fully automatic operation Yes
Servo function Yes
Suitability for escape and rescue routes No
Break-out function (BO) No
Inner diameter (min.) 1800 mm
Inner diameter (max.) 3000 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height 3000 mm
Canopy height (min.) 17 mm
Side elements version 16 mm GG, Special glass on request
Version of roof structure Glass roof
Illumination not possible with glass roof
Floor covering Entrance mat, Entrance mat according to customer wishes
Night-time closer layout Outside
Night-time closer type Manual
Night-time closer design 10 mm LSG
Lock Manual
Door handles horizontal or vertical Yes
Floor ring Yes
Underfloor operator Yes
Disabled person's button Yes
Standard conformity DIN 18650, EN 16005
