Slimdrive

Slimdrive SL-BO * Automatic sliding door system for escape and rescue routes with break-out function

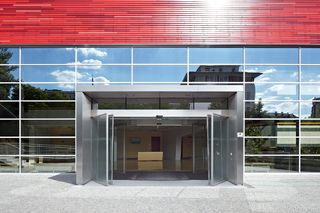

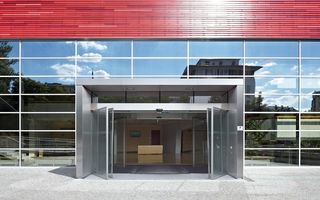

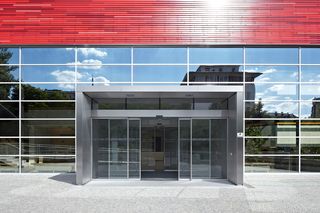

Slimdrive SL-BO, Auditorium centre Rechts der Isar Hospital, Munich Automatic sliding door system for emergency exits with break-out function

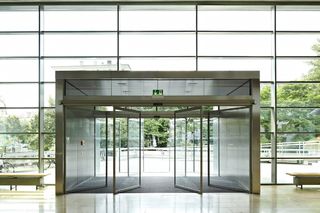

  • BO function allows the leaves and side elements to swing open in the direction of escape
  • Integrated electrical lockings for "night" mode of operation
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
Show more
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Automatic sliding door system for escape and rescue routes with break-out function

Application Areas

  • Single and double leaf sliding door systems along escape and rescue routes
  • Interior and exterior doors with maximum safety requirements
  • Façades with slim post-rail constructions
  • Opening widths of 900 to 2500 mm possible
  • Door leaf weights of up to 100 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

Slimdrive SL-BO
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
Depth 189 mm
Leaf weight (max.) 1-leaf 100 kg
Leaf weight (max.) 2-leaf 100 kg
Opening width 1-leaf 900 mm - 1400 mm
Opening width 2-leaf 1000 mm - 2500 mm
Service temperature 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005

Variants & Accessories
