Slimdrive SL NT PAS 24 Automatic linear sliding door system with burglar resistance according to PAS 24

Slimdrive SL NT PAS 24
  • Certified burglar resistance according to PAS 24
  • Locks the doors after closing
  • Unobtrusive locking system
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
Contact us

Slimdrive SL NT PAS 24

Automatic linear sliding door system with burglar resistance according to PAS 24

Application Areas

  • Single and double leaf sliding door systems along escape and rescue routes
  • Interior and exterior doors with maximum safety requirements
  • Opening width for double leaf doors from 900 to 3000 mm
  • Opening width for single leaf doors from 900 to 1500 mm
  • Door leaf weights of up to 125 kg per leaf

This product has been awarded

Architects Darling Award 2019, bronze for automatic doors

Installation situations in reference objects and videos

ECdrive in Pediatric Cancer Center SJD Facade of the building with EC Drive at the entrance

ECdrive in Pediatric Cancer Center SJD

Facade of the building with EC Drive at the entrance © GEZE Iberia

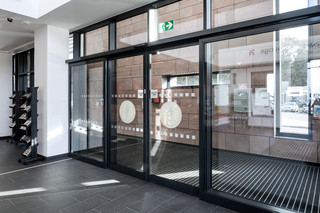

Slimdrive SL NT PAS 24

Slimdrive SL NT PAS 24

© Keith Hunter / GEZE GmbH

Sliding door solutions from GEZE, product video

ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

Technical data

Slimdrive SL NT PAS 24
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
MONO glass fine-framed Yes
Height 70 mm
Depth 190 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 2-leaf 900 mm - 3000 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN EN ISO 13849: Performance Level D, EN 16005

Downloads

Variants & Accessories

Display programme switch DPS
Accessories

DPS

Display programme switch for setting the mode of operation for automatic doors

Product details
Elbow switch Niro
Accessories

KFT elbow switch

Plastic elbow switch, IP rating IP20, for activation of automatic doors

Product details
LS 990 elbow switch
Accessories

LS 990 elbow switch

Elbow switch for activating automatic doors

Product details
