Slimdrive SLV * Automatic sliding door system for use on angled façades or corners

Slimdrive SLV The product uses building-specific design and manufacturing. With stand-alone error detection and logging. The inputs and outputs can be configured for different functions. The product has an integrated rechargeable battery for emergency opening and closing in the event of a power failure.
  • The product is designed and manufactured specifically for each project
  • Very quiet running, low-wear direct current drive with a height of only 7 cm

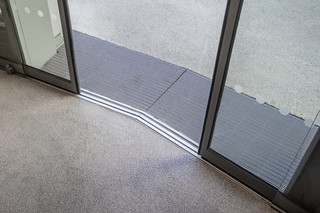

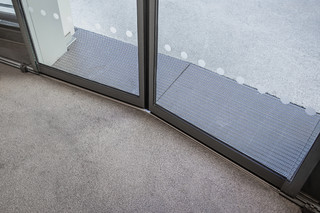

  • Angle in the drive rail 90° to 270°.
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
Show more
  • Integrated battery for emergency opening and closing in the event of a power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Double leaf sliding door systems

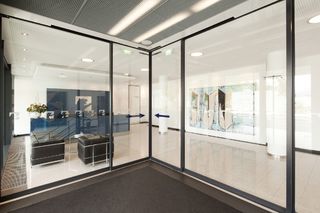

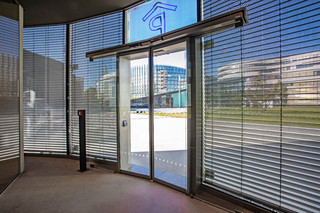

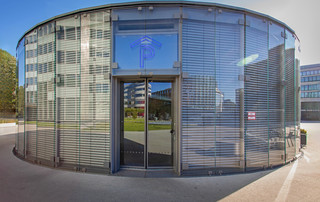

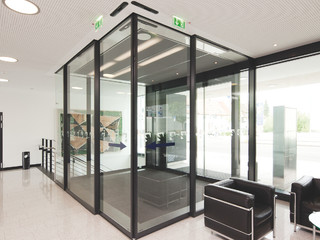

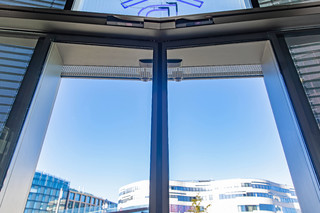

  • For use on angled façades or corners
  • Interior and exterior doors with high access frequency
  • Façades with slim mullion-transom constructions
  • Glass façades with the highest design standards
  • Opening widths of 900 to 2500 mm possible
  • Door leaf weight of up to 120 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass
  • Suitable for various profile systems

Technical data

Slimdrive SLV
For 1-leaf door systems -
For 2-leaf door systems Yes
Height 70 mm
Depth 190 mm
Leaf weight (max.) 2-leaf 120 kg
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
