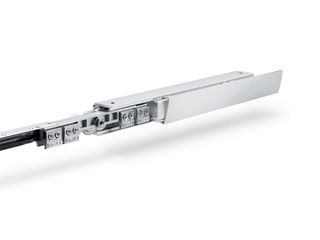

Levolan 120 Glass * Sliding door fitting for 120 kg glass leafs

  • Design sliding door fitting system for glass doors with ESG (toughened safety glass ) 10 to 12 mm as well as LSG up to 12.76 mm and up to 120 kg leaf weight
  • Slim design with integrated door fitting technology
  • Fully integrated in the track
  • The Levolan Smart fix installation system means the use of assembly tools is reduced to a minimum - for quick and convenient installation
  • Final assembly of the door fitting by simple clipping
  • With damping on one or both sides, for doors up to 120 kg leaf weight so that the door is stopped gently and pulled autonomously into the end position
Show more
  • Tested for durability in accordance with DIN EN 1527 over 100,000 test cycles
Contact us

Sliding door fitting for 120 kg glass leafs

Application Areas

  • For design-oriented interior sliding doors for living and office areas
  • For all single- and multiple-leaf sliding doors
  • For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
  • Damped on one or both sides with Levolan 120 SoftStop
  • Smooth running with Levolan 60 SoftStop makes it particularly well suited for doors in living and office spaces

Technical data

Levolan 120 Glass
Leaf material Toughened safety glass (ESG-H), Laminated safety glass (LSG from toughened safety glass)
Leaf weight (max.) 120 kg
Number of leaves 1-leaf
Leaf width (min.) 640 mm
Leaf width (max.) 1440 mm
Leaf height (max.) 3500 mm
Leaf thickness from 10 mm
Leaf thickness to 12.76 mm
Track geometry straight
EN 1670 Corrosion resistance 3 (acc. to EN 1670: Class 0 = none defined, Class 1 = low, Class 2 medium, Class 3 = high, Class 4 = very high, Class 5 = extraordinary)
EN 1527 Continuous function 100,000 test cycles
Type of installation Wall installation, Ceiling installation, Glass installation, Concealed in the ceiling
DIN direction left / right
Manual operation Yes
Surface anodised
Colour EV1
