Perlan 140 KS for timber leaves * Corrosion-resistant sliding fitting system for ceiling mounting of timber leaves up to 140 kg, can be extended for glass leaves
- Extremely reliable corrosion protection for leaf weights up to 140 kg
- Precision ball bearings in the roller carriages offer very smooth sliding action
- Tested in accordance with EN 1670 Class 4 for external use or in extreme climatic conditions, such as swimming baths
Application Areas
- Corrosion-resistant fitting for exterior use
- Sliding shutters and shading systems
- Installation of fittings possible in combination with overhanging weather hood
- Single and multi-leaf sliding panel
- For ceiling installation
Technical data
Perlan 140 KS for timber leaves | |
Leaf material | Wood |
Leaf weight (max.) | 140 kg |
Number of leaves | 1-leaf, 2-leaf |
Leaf width (min.) | 500 mm |
Leaf width (max.) | 1640 mm |
Track geometry | straight |
Type of installation | Ceiling |
DIN direction | left / right |

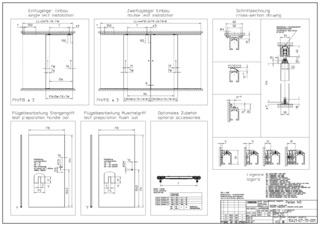

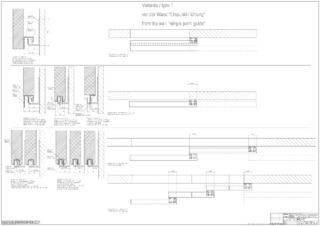

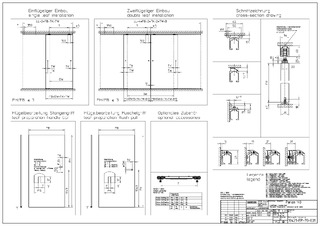

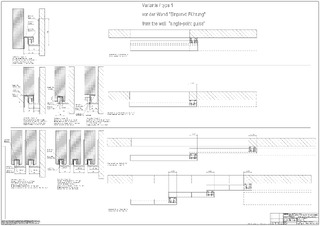

Downloads
LABELLING OBLIGATION: © Studio BE / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
