Rollan

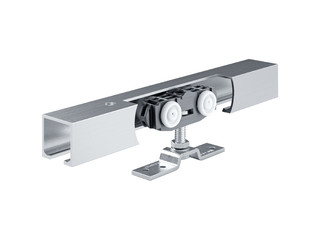

Rollan 80 NT complete set * Sliding door fitting for timber leaves

Rollan 80 NT wood Sliding door fitting for wood, plastic or metal doors with 80 kg leaf weight damped on one or both sides
  • Sliding door fitting for timber leaves with up to 80 kg leaf weight
Contact us

Application Areas

  • For timber, plastic, and metal leaves
  • For leaf weights up to 80 kg
  • For wall and ceiling installation

Technical data

Rollan 80 NT complete set
Leaf material Wood, Plastic, Metal
Leaf weight (max.) 80 kg
Leaf weight (max.) with draw-in damper 40 kg
Number of leaves 1-leaf, 2-leaf
Leaf width (min.) 500 mm
Leaf width (max.) 1640 mm
Test cycles 50000
Corrosion protection class 1
Type of installation Wall, Ceiling
Access for all according to DIN 18040

Variants & Accessories
