Programme switches

MPS Mechanical programme switch for setting the mode of operation for automatic doors

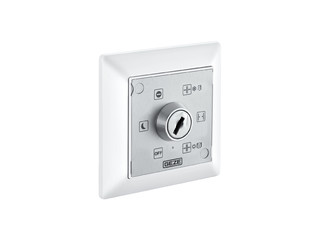

Mechanical programme switch MPS Programme switch for selecting the operating status of autom. doors with keys
  • Available with rotary button or key
  • Six adjustable modes of operation
  • LED for error display
Contact us

MPS

Mechanical programme switch for setting the mode of operation for automatic doors

Application Areas

  • For changing the modes of operation of GEZE automatic door systems

Installation situations in reference objects and videos

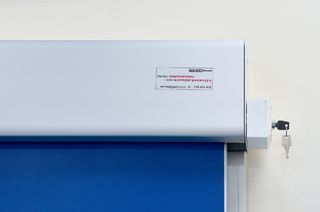

Automatic sliding door ECdrive H installed in the Asklepios Clinic in Poland Automatic linear sliding door system for areas with increased hygiene demands and mechanical programme switch MPS-ST

Automatic sliding door ECdrive H installed in the Asklepios Clinic in Poland

Automatic linear sliding door system for areas with increased hygiene demands and mechanical programme switch MPS-ST © Łukasz Janicki / GEZE GmbH

Technical data

MPS

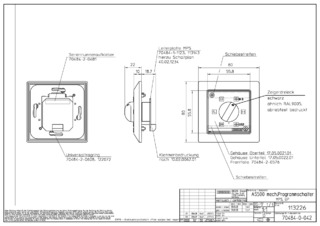

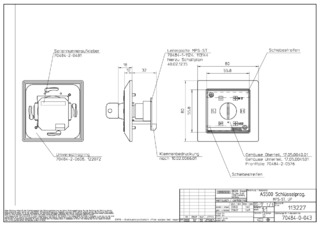

Dimensions 80 x 80 x 12 mm
Current consumption 50 mA
IP rating IP40
Type of installation Flush-mounted installation
Connection cable length 100 m
Service temperature -15 - 50 °C
