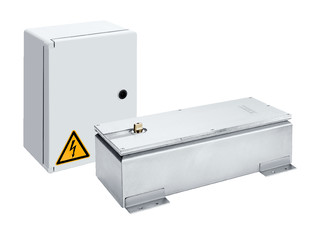

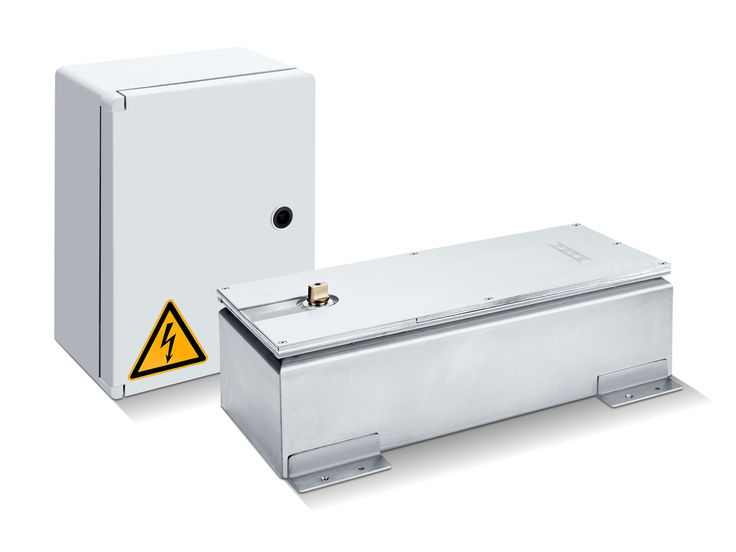

UFO NT * Electromechanical floor-mounted swing door drive for single leaf doors weighing up to 125 kg
- Drive unit is embedded in the floor and meets the highest design expectations
- High degree of IP protection and sealed stainless steel housing for outdoor use
- Smart swing function for easy manual door opening
- Closing force with variable adjustment
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical automatic unit latching action in regular operation, which accelerates the door shortly before it is closed
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
- Obstacle detection detects an object through contact and stops the opening or closing process
- Push & Go function triggers the automatic drive following light manual pressure on the door leaf
Application Areas
- Single-action, single leaf, right and left closing doors
- Doors up to 1100 mm leaf width or 125 kg in weight
- Minimum door leaf width is 600 mm
- Interior and exterior doors with high access frequency

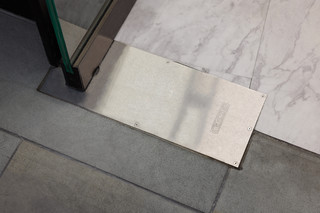

- Floor mounting, concealed
Installation situations in reference objects and videos
UFO NT

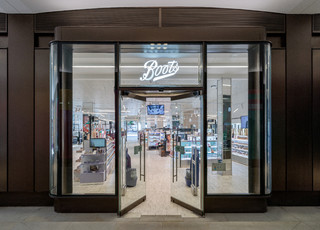

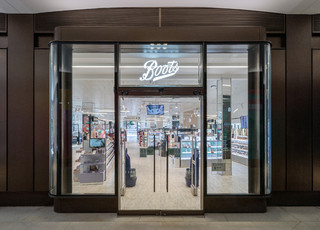

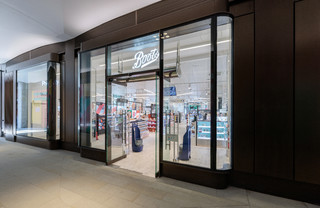

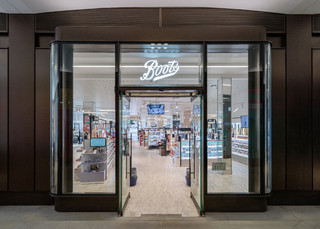

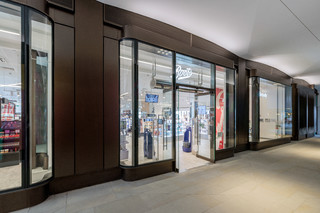

Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT

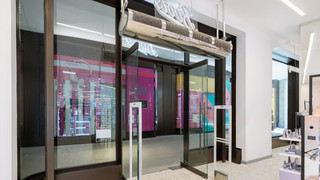

Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT
Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT
Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT
Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT
Shopping Centre Boots Kensington High St © GEZE GmbH
UFO NT
© GEZE GmbH
Technical data
| UFO NT | |
| Height | 150 mm |
| Width | 195 mm |
| Leaf weight (max.) 1-leaf | 125 kg |
| Distance centre door hinge-drive axis (min.-max.) 2-leaf | 1200 mm - 2200 mm |
| Leaf width (min.-max.) | 600 mm - 1600 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| DIN left | Yes |
| DIN right | Yes |
| Mechanical latching action | Yes |
| Closing force adjustable | Yes, stepless |
| Closing force in accordance with EN 1154 | EN 1 - 4 |
| Activation delay (max.) | 10 s |
| Power rating | 200 W |
| Power supply for external consumers (24 V DC) | 1200 mA |
| Service temperature | -15 - 50 °C |
| IP rating | IP67 |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| function smart swing | Yes |
| Obstacle detection | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
