Guide rail 1-leaf

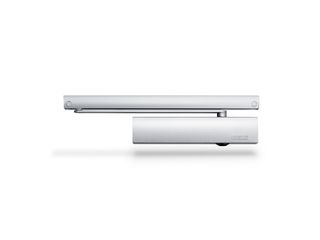

TS 5000 ECline * Overhead door closer with guide rail for accessible single leaf doors of up to 1250 leaf width with opening assistance

TS 5000 ECline door closer Overhead door closer with guide rail for barrier-free single leaf doors up to 1250 mm leaf width with opening assistance, and integrated back check, which decelerates quickly opened doors.
  • Closing force of EN3-5 with variable adjustment
  • Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
  • Can be used for right and left hand doors without conversion
  • Opening assistance for easy opening and comfortable passing of the door
  • Opening assistance can be switched off for doors with wind load or pressure differences
  • Hydraulic latching action which accelerates the door shortly before it is closed
Show more
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front and less installation time compared to standard systems
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1250 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Access for all in accordance with DIN 18040 up to EN5

Technical data

TS 5000 ECline
Closing force in accordance with EN 1154 EN 3 - 5
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1250 mm
Leaf width (max.) 1250 mm

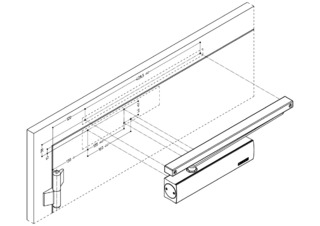

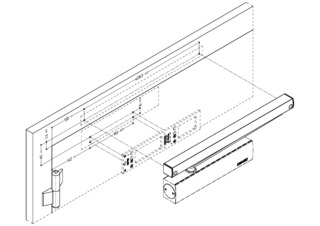

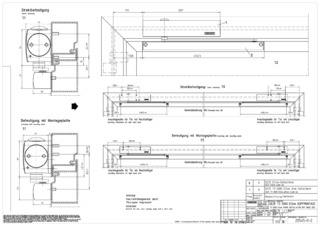

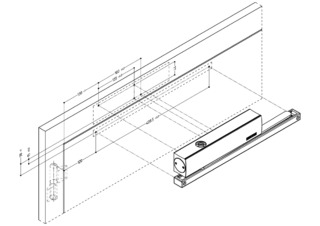

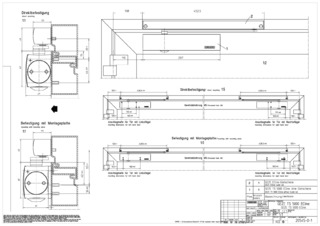

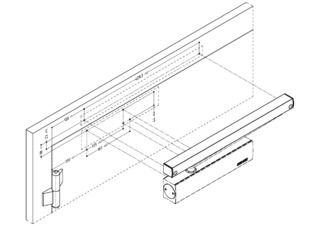

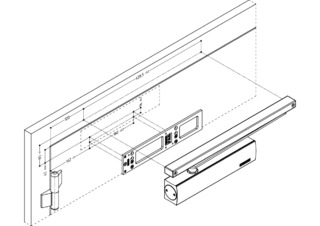

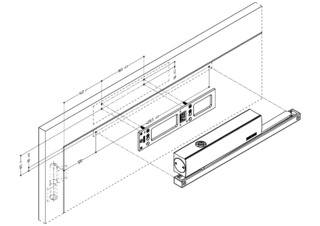

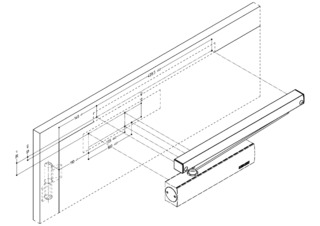

Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Integrated opening assistance Yes
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional
