TS 5000 ISM

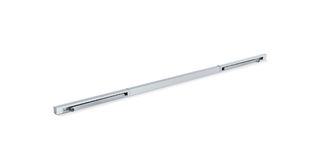

ISM guide rail TS 5000 * With closing sequence control and levers

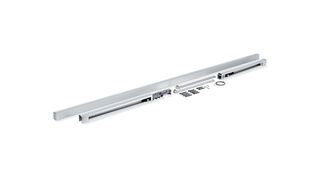

ISM guide rail TS 5000 extra length
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
  • With screwed slide block
Contact us

Application Areas

  • Double leaf doors with closing sequence control
  • Installation on hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm

Technical data

ISM guide rail TS 5000
Minimum hinge clearance 1300 mm
Minimum passive leaf width 400 mm
Standard conformity EN 1158
Length 2630 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Closing sequence control integrated Yes
Height correction possible Yes
Flexible opening restrictor Yes

Variants & Accessories
