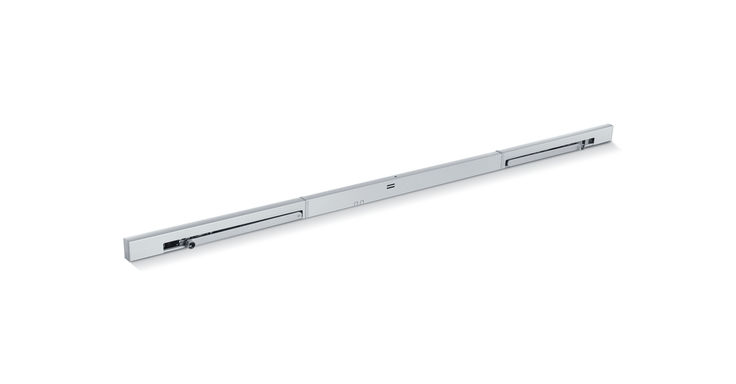

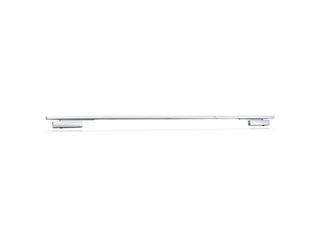

TS 5000 R-ISM ECline * Overhead door closer system with guide rail for barrier-free, easy-to-open double leaf doors with closing sequence control and smoke switch control unit
- System with two door closers TS 5000 ECline, R-ISM guide rail
- Closing force of EN3-5 with variable adjustment
- Operating voltage 230 V AC
- Can be used for right and left hand doors without conversion
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Additional smoke detectors can be fitted
- Electric hold-open device in the guide rail on both leaves with hold-open area 80°-130°
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Single-action doors up to 2500 mm hinge clearance and 1250 mm leaf width
- Symmetrical and asymmetrical division of door possible
- Door leaf installation hinge side
- Hold-open systems with integrated hold-open device
Technical data
TS 5000 R-ISM ECline | |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1250 mm |
Leaf width (max.) | 1250 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 230 V AC |
Frequency of supply voltage | 50 Hz |
Minimum hinge clearance | 1500 mm |
Minimum passive leaf width | 400 mm |
Suitability for fire protection doors | Yes |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Electrical |
Hold-open device on the active leaf / passive leaf | Yes / Yes |
Hold-open range | 80 ° - 130 ° |
Smoke switch integrated | Yes |
Closing sequence control integrated | Yes |
