Link arm 1-leaf

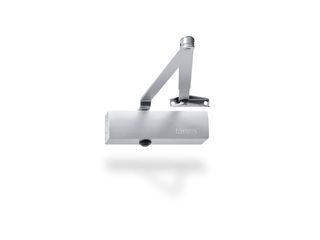

TS 1500 Overhead door closer with link arm for single leaf doors of up to 1100 mm leaf width with adjustable closing speed
- Variable closing force of EN3 or EN4 by reversing the bearing block
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Overhead door closer with link arm for single leaf doors of up to 1100 mm leaf width with adjustable closing speed
Application Areas
- Right and left single-action doors for interior use
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Installation situations in reference objects and videos
Door closer TS 1500
Overhead door closer TS 1500, with hold-open arm, hinge side, transom installation. Installed at Sports Hall in Zadar, Croatia. © Robert Les / GEZE GmbH
Door closer TS 1500
Overhead door closer TS 1500, with hold-open arm, hinge side, transom installation. Installed at Sports Hall in Zadar, Croatia. © Robert Les / GEZE GmbH
Technical data
| TS 1500 | |
| Closing force in accordance with EN 1154 | EN 3/4 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1100 mm |
| Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, via installation |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
