TS 4000 EN 1-6

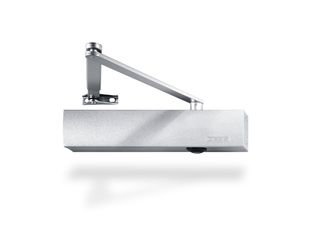

TS 4000 S * Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with delayed closing

Door closer TS 4000 Overhead pinion door closer with link arm, Closing force size 1-6 and 5-7 acc. to
  • Closing force with variable adjustment from EN2-6
  • Can be used for right and left hand doors without conversion
  • Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
Show more
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width

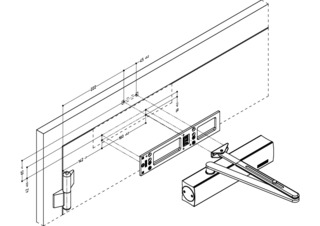

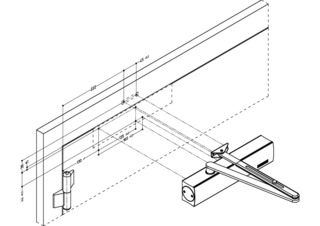

  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 4000 S
Closing force in accordance with EN 1154 EN 2 - 6
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Delayed closing integrated Yes
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Optional
