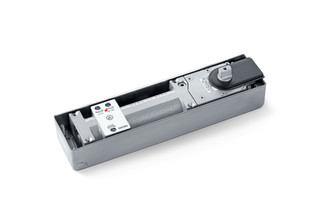

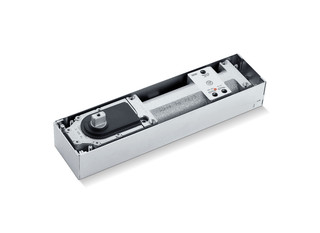

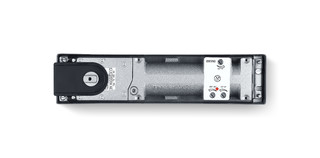

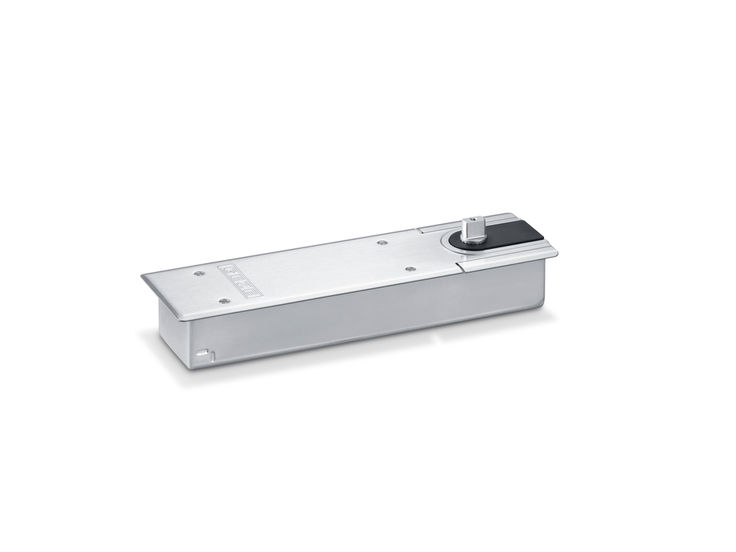

Closer body TS 550 NV * Basic body for floor-mounted door closer EN 3-6 with integrated hold-open function
- Closing force with variable adjustment
- Closing speed can be adjusted from the top via valves
- Latching action can be adjusted from the top via valves
- Back check can be adjusted from the top via valves
- Delayed closing can be adjusted from the top via valve
- Mechanical hold-open device with hold-open area from 85° - 165°
Application Areas
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- For leaf weights up to 300 kg
Technical data
Closer body TS 550 NV | |
Use on single-/double-action door | Single-action door, Double-action door |
Opening angle (max.) | 170 ° |
Closing force in accordance with EN 1154 | EN 3 - 6 |
Leaf width (max.) | 1400 mm |
Leaf weight (max.) | 300 kg |
DIN direction | left / right |
Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
Length | 342 mm |
Width | 82 mm |
Height | 54 mm |
Length adjustment range for cement box | 9 mm |
Width adjustment range for cement box | 10 mm |
Height adjustment range for cement box | 6 mm |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Mechanically fixed |
Delayed closing integrated | Yes |
Position of closing force adjustment | Top |
Safety valve againts overload | Yes |
Thermo-control valves | Yes |
Closing effect from | 170 ° |
Hold-open device can be switched on and off | Yes |
Hold-open device can be overridden | Yes |
