OL 320

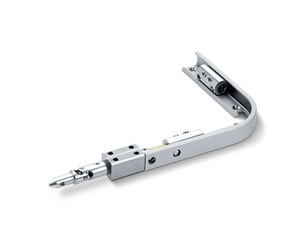

Fz 100 corner operating gear * Without crank rod, without crank

Corner operating gear Fz 100 OL 100 accessory
  • Corner transmission pre-mounted with universal joint
  • Bottom opening width with variable adjustment
  • Restriction of tilted opening through stroke limiter
  • Additional functional safety through overload protection
Contact us

Fz 100 corner operating gear

Application Areas

  • For the convenient operation of a rectangular or bespoke angular window using a fixed or detachable crank rod
  • Can be used in combination with an OL 320 scissor on inward-opening bottom-hung windows
  • Installation on wooden, plastic and aluminium windows
  • Frame installation

Technical data

Fz 100 corner operating gear
Width 26 mm

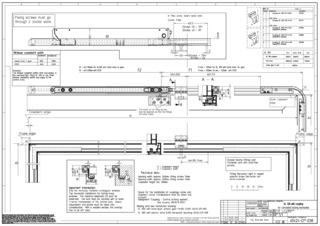

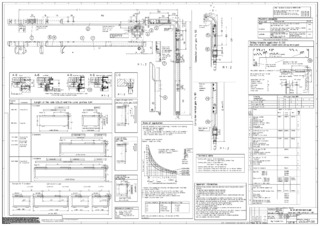

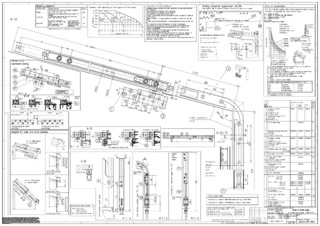

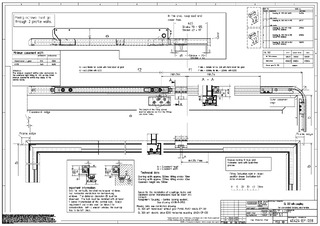

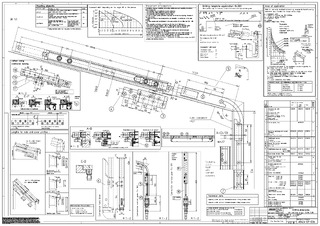

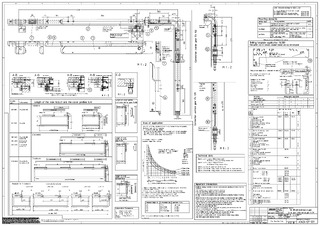

Downloads

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
