OL 90 N

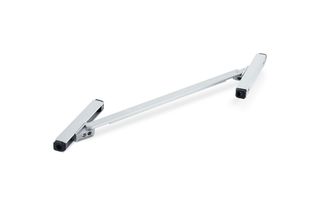

Corner bracket transmission for OL 90 N * for operating multiple windows via one operating element

Transmission for angle bracket
  • Achieves the full opening width of 170 mm for all leaf heights
  • The opening width can be adjusted
  • Up to 5 windows with a maximum leaf weight of 80 kg can be operated via one operating element
  • Can be installed on the secondary closing edge or main closing edge
  • Completely pre-mounted assembly group facilitates installation
Contact us

Corner bracket transmission for OL 90 N

Application Areas

  • Convenient daily ventilation of multiple windows through the use of an operating element
  • Can be used in combination with OL 90 N scissors on inward opening bottom-hung and top-hung windows
  • Automation by E 212 electric linear drive
  • Installation on wooden, plastic or aluminium windows
  • Frame installation

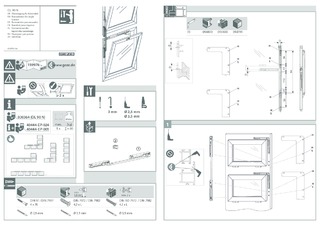

Downloads

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
