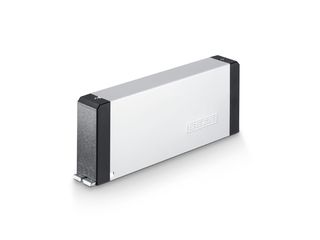

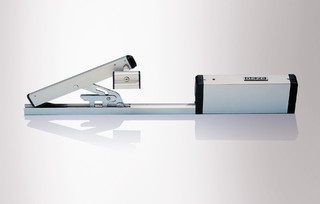

E 212 * Electric linear drive for automation of slimline fanlight openers
- Cost-effective and simple motorised solution for activating several scissors
- Can be integrated perfectly into the façade design thanks to its slim and discreet look
- Opening width variably adjustable over stroke length and can be adjusted as necessary
- Load cut-off and integrated limit switch as well as stroke are adjustable
- Completely pre-mounted assembly groups facilitate installation
Electric linear drive for automation of slimline fanlight openers
Application Areas
- Automation of GEZE OL 90, OL 95 N and OL 320 fanlight openers
- Natural ventilation in the façade area
- Inward-opening bottom-hung leaves
- Automation of louvre windows
- Installation on wooden, PVC or metal windows
- Frame installation

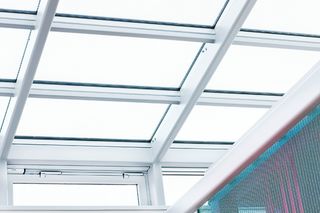

Installation situations in reference objects and videos

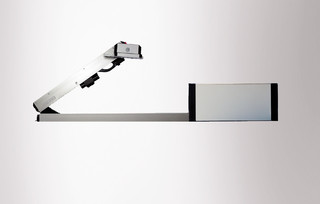

Opening drive - OL 100 with E 212, heart centre
Smoke and heat extraction system and window technology, electric linear drive for Slimline skylight openers © GEZE GmbH
Opening drive - OL 90 with E 212, VGH Versicherungen (insurance company)
Electric linear drive for the automation of Slimline skylight openers © Lothar Wels / GEZE GmbH
Product specifications
| E 212 | |
| Space required on frame (min.) | The spatial need should be determined individually |
| Space requirement on leaf (min.) | The spatial need should be determined individually |
| Power consumption | 90 W |
| Temperature range | -20°C...+60°C |
| IP rating / protection rating | IP42 |
| Syncro function | No |
| Adjustable opening speed (ventilation) | No |
| Additional locking available | No |
| Overload cut-off | No |
| SHEV tested | No |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | No |
| Bottom-hung window OUTWARD-opening frame installation | No |
| Bottom-hung window OUTWARD-opening leaf installation | No |
| Side-hung window INWARD-opening frame installation | No |
| Side-hung window INWARD-opening door leaf installation | No |
| Side-hung window OUTWARD-opening frame installation | No |
| Side-hung window OUTWARD-opening door leaf installation | No |
| Top-hung window INWARD-opening frame installation | No |
| Top-hung window INWARD-opening leaf installation | No |
| Top-hung window OUTWARD-opening frame installation | No |
| Top-hung window OUTWARD-opening leaf installation | No |
| OUTWARD-opening roof window | No |
| Projected top-hung window OUTWARD-opening frame installation | No |
| Parallel-opening window OUTWARD-opening frame installation | No |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail.
