Slimchain 230 V

WRM-230B * Receiving module for activating window drives with 230 V DC

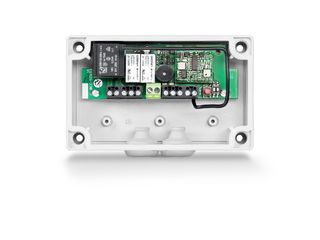

WRM 230B receiving module Activation device
  • Encrypted communication via rolling code with up to 74 trillion code combinations
  • Simple teach-in via learn button with acoustic feedback
  • Up to 85 radio transmitters can be taught
  • Operating voltage 230 V AC
Contact us

Application Areas

  • Activation of GEZE 230 V window drives via the GEZE wireless program
  • Surface-mounted installation

Technical data

WRM-230B
Dimensions 130 x 80 x 35 mm
Output Electrical relay
IP rating IP54
Type of installation Surface-mounted
Connection type Screw terminal
Transmission frequency 433.93 Mhz
Service temperature 0 - 50 °C
