Guide rail 1-leaf
TS 3000 B Guide rail door closer for 1-leaf doors of up to 1100 mm leaf width
- Closing force of EN2-4 with variable adjustment
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
- Closing speed can be individually adjusted
- All functions can be adjusted from the front, except for the closing force which is on the side
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width
- Door leaf installation on the hinge side or opposite hinge side
- Transom installation on the opposite hinge side

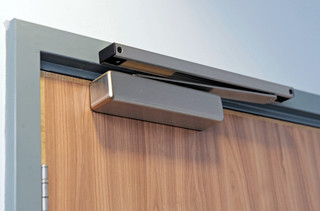

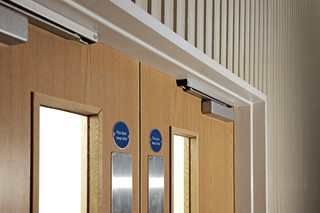

Installation situations in reference objects and videos
TS 3000 B
© GEZE GmbH
TS 3000 B
© GEZE GmbH
Technical data
| TS 3000 B | |
| Closing force in accordance with EN 1154 | EN 2 - 4 |
| Leaf width (max.) | 110 cm |
| Opening angle (max.) | 130 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Length | 260 mm |
| Width | 49 mm |
| Height | 40 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Position of closing force adjustment | At the side |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
