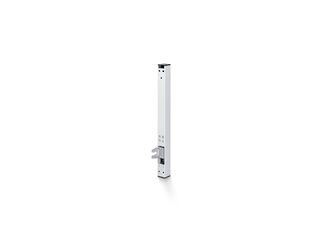

Power lock Locking drive in combination with Slimchain, Powerchain or E 250 NT
- System solution for locking in combination with Slimchain, Powerchain and E 250 NT window drives from the the IQ windowdrive series
- Automatic locking of the window through access to the window transmission
- Meets high specifications in terms of wind load, sealing in the event of rain and air tightness
- Electronic position detection that unlocks the window before opening it
- Electronic end-position cut-off offers protection against incorrect operation and overloading
- High tensile and compressive force for up to six locking points
- Locking and unlocking in six seconds
- Synchronization of up to two Power lock and four window drives from the IQ windowdrive series possible
- Tested in combination with window drives from the IQ windowdrive series in accordance with EN 12101-2 (SHEV)
Locking drive in combination with Slimchain, Powerchain or E 250 NT
Application Areas
- Additional safety and protection against weather conditions
- For natural ventilation, smoke and heat extraction systems, natural smoke and heat extraction device (SHEV)
- Can be used in the exhaust air and air intake

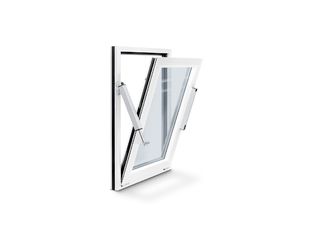

- Inward-opening windows with bottom-hung, side-hung, top-hung, swing and vertically centre pivoted leaves
- Installation on wooden, PVC or metal windows
- Leaf or frame installation
Installation situations in reference objects and videos

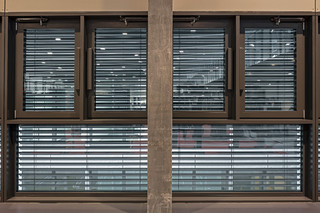

GEZE K 600 F retractable arm drive + locking drive
© Lorenz Frey / GEZE GmbH

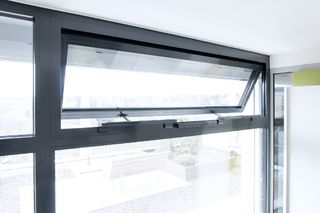

Chain drive Slimchain, Power lock locking drive
Chain drive in attractive design with numerous possible applications in 24 V version, installed in a residential building © GEZE GmbH

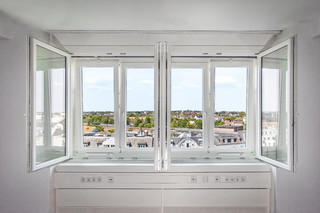

Integrated chain drive E 970 and E 905 / E 906 and safety scissor stays
Integrated chain drive E 970 and E 905 / E 906 and safety scissor stays in a residential building © GEZE GmbH

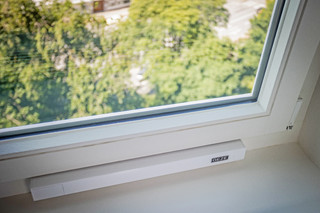

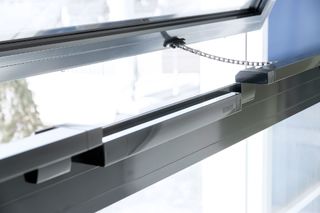

Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH
Power lock and Slimchain
Slimchain chain drive in a pleasant design with many applications in combination with Power lock locking drive. © GEZE GmbH

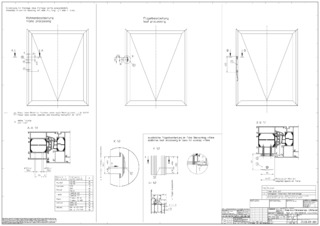

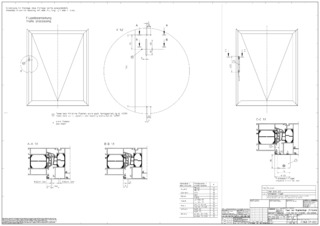

Technical data
| Power lock | |
| Space needed on frame (min.) | Necessary space should be determined individually |
| Space requirement on leaf (min.) | Necessary space should be determined individually |
| Available stroke length | 22 mm |
| Opening speed ventilation | 3.6 mm/s |
| Compressive force | 800 N |
| Tensile force | 800 N |
| Voltage at operation | 24 V ± 25 % |
| Operating voltage | 24 V DC |
| Current consumption | 1.5 A |
| Power consumption | 36 W |
| Duty rating | 30 % |
| Connection cable length | 2 m |
| Special length of power supply cable | 5 m, 7.5 m |
| Min. core cross section | 0.75 mm² |
| Number of cores | 4 cores |
| Service temperature | -5 - 70 °C |
| IP rating | IP42 |
| protection rating | III |
| Adjustable opening speed (ventilation) | Yes |
| SHEV tested | Yes |
| KNX ability | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window INWARD-opening leaf installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening leaf installation | Yes |
