Opening drives

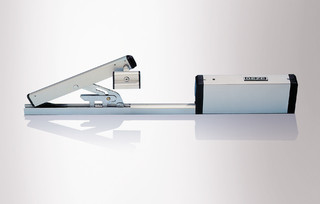

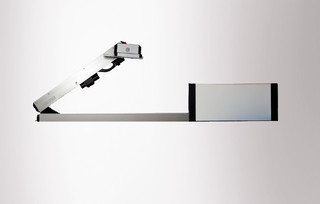

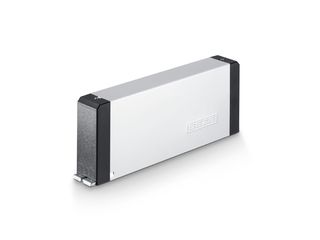

E 212 24 V Electric linear drive for automation of fanlight openers
- Cost-effective and simple motorised solution for activating several scissors
- Can be integrated perfectly into the façade design thanks to its slim and discreet look
- Opening width variably adjustable over stroke length and can be adjusted as necessary
- Load cut-off and integrated limit switch as well as stroke are adjustable

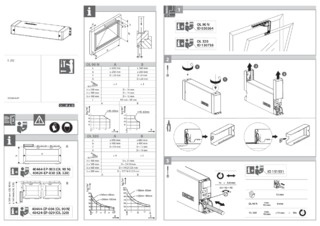

- Completely pre-mounted assembly groups facilitate installation
Electric linear drive for automation of fanlight openers
Application Areas

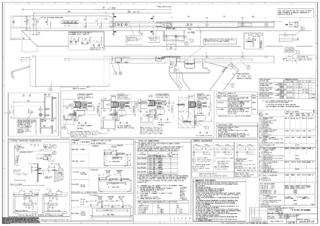

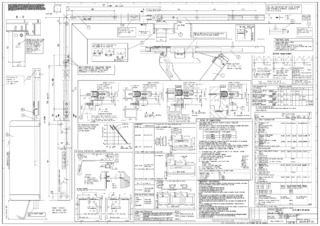

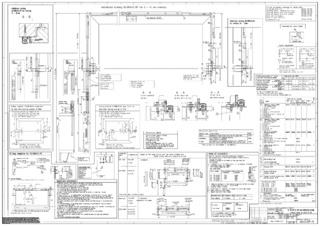

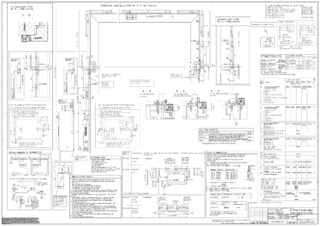

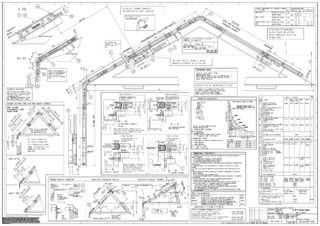

- Automation of GEZE OL 90, OL 95 N and OL 320 fanlight openers
- Natural ventilation in the façade area
- Inward-opening bottom-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation
Installation situations in reference objects and videos

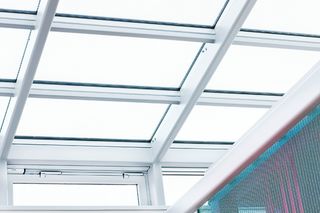

Opening drive - OL 90 with E 212, VGH Versicherungen (insurance company)
Electric linear drive for the automation of Slimline skylight openers © Lothar Wels / GEZE GmbH
Opening drive - OL 100 with E 212, heart centre
Smoke and heat extraction system and window technology, electric linear drive for Slimline skylight openers © GEZE GmbH
Technical data
| E 212 24 V | |
| Space needed on frame (min.) | Necessary space should be determined individually |
| Space requirement on leaf (min.) | Necessary space should be determined individually |
| Compressive force | 1500 N |
| Tensile force | 1500 N |
| Operating voltage | 24 V DC |
| Current consumption | 1.2 A |
| Power consumption | 29 W |
| Duty rating | 25 % |
| Min. core cross section | 2.5 mm² |
| Number of cores | 3 cores |
| Service temperature | -20 - 60 °C |
| IP rating | IP42 |
| Type of stroke shortening | Mechanical |
| End position cut-off extended | Limit switches |
| End position cut-off retracted | Limit switches |
| Overload cut-off | Yes |
| Bottom-hung window INWARD-opening frame installation | Yes |
